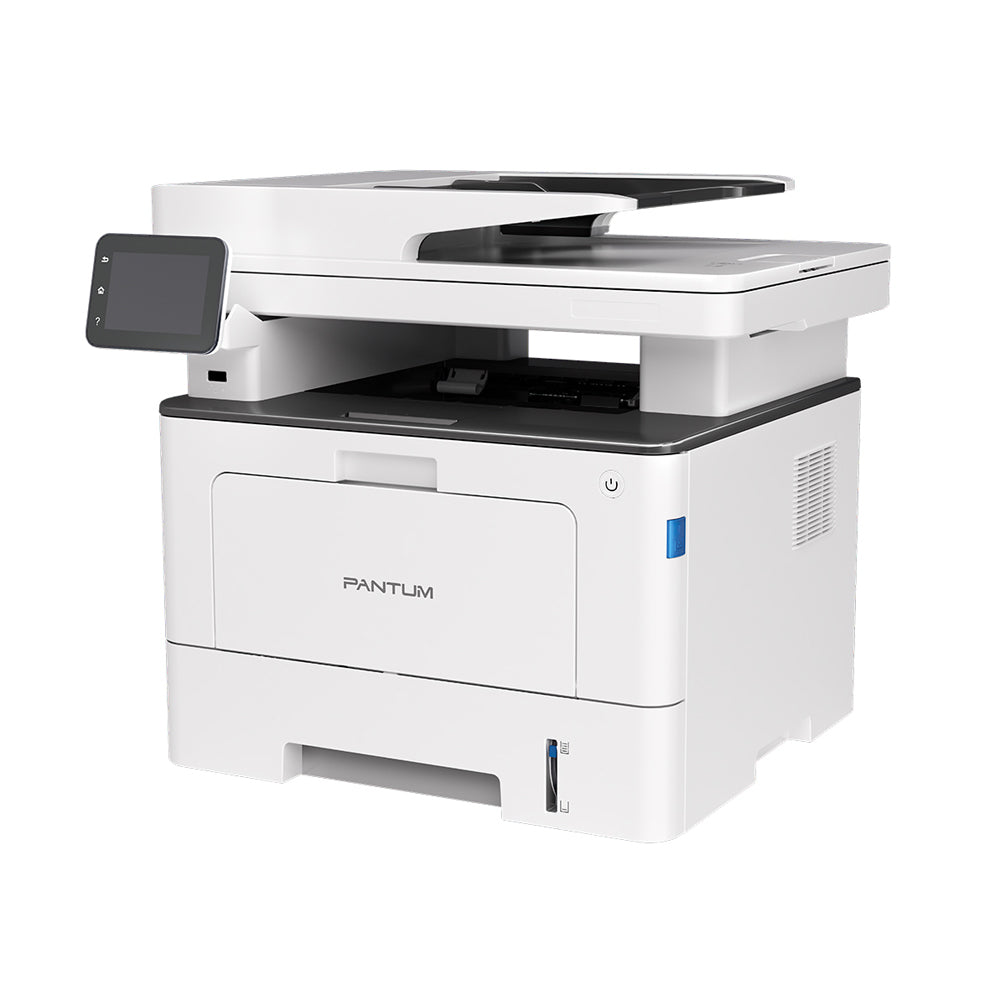

Pantum BM5100FDW Mono laser multifunction printer

Description

BM5100FDW Mono laser multifunction printer

Printing speed：40ppm

Connection method：USB+NET+WIFI

Basic function：Print、Copy、Scan、Fax

Special function：

-3.5-inch touch screen, One step driver installation

-2*550 pages optional paper tray

-Optional 15,000 pages toner cartridge

-One pass two side scanning

-USB disk driect printing

-Confidential printing

-Dual-band WiFi(2.4G/5G) support

MODEL

Model: BM5100FDW

PRINT

Print Speed: 40ppm(A4)/42ppm(Letter)

First Print out time: ≤6.9s

Recommended monthly page volume: 750 to 4,000 pages

Monthly Duty Cycle(1): 100,000 Pages

Printer language: PCL5e、PCL6、PS

Processor speed: 1.2 GHz

Memory: 512 MB

Control panel: 3.5 inch touch screen

Auto Duplex print: Yes

Duplex print speed: 20spm（A4）/21spm（Letter）

Duplex print support paper size: A4\Letter\Legal\Folio\Oficio

Other printing functions: Booklet printing、Secure printing 、USB disk printing; Support AirPrint, Mopria, mobile APP(iOS APP/Android APP)

NFC function: Yes

COPY

Copy Speed: 40ppm(A4)/42ppm(Letter)

First copy out time: flatbed：less than 10s ；ADF：less than 11s

Maximum copy pages: 99

Copy reduce / enlarge settings: 25%~400%

Copy Special Features: ID copy, Receipt copy, N-up copy, Clone copy、poster copy、collated copy、watermark copy

Scan

Scanner type: Flatbed+DADF

Auto duplex scan: Yes

ADF capacity: 50 pages

Scan Speed: 24 ppm(A4)/48 ipm(A4) 25 ppm(Letter)/50 ipm(Letter)

Maximum scan size: Flatbed: 216×297 mm ；ADF: 216×356 mm

Color scaning: Yes

Scan Destinations: Scan to PC、E-mail、FTP、SMB、thumb drive、 APP（iOS/Android/iPad OS）

FAX

Fax type: Mono

Modem Speed: 33.6Kbps

Fax Memory: 650 pages

Fax resolution: Standard: 200 x 100dpi ；Fine: 200 x 200dpi ；Super fine: 200 x 400dpi ；Picture 00 x 300dpi

Coded system: MH / MR / MMR / JBIG

Compatibility: ITU-T SG3 / ECM

PAPER HANDLING

Paper input tray: 250 Pages

Optional input paper tray: PT-511H，550 Pages(Maximum:2)

Multipurpose tray: 60 Pages

Maximum paper input capacity: 1410 Pages

Paper output tray: 150 Pages

Media types: Paper(plain, thick, thin,recycled),Transparency, Cardstock, Label, Envelope(4)

Media sizes: A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6， Yougata4, Postcard, Younaga3, Nagagata3, Yougata2

Media weight: Input tray：60-120g/㎡ ；Multipurpose tray：60-200g/㎡ ；Optional tray：60-120g/㎡

OTHER

Dimensions (w*d*h): 415*365*370 mm

Product Weight(with cartridge): 12.5kg

Package size(W×D×H): 559*444*488 mm

Package Weight(with cartridge): 14.7kg

Operating temperature range: Recommended temperature: 10～32℃ ；Humidity range：20% ～ 80%

Input voltage: 110V：AC100-127V, 50/60Hz,14A ；220V：AC220-240V, 50/60Hz，7A

Noise: Ready≤30dB(A) ；Print≤54dB(A) ；scan≤54dB(A) ；copy≤57dB(A)

Power consumption: Print average：≤650W ；Ready：≤60W； Sleep：≤1W

Operating system compatibility: Microsoft Windows： Server2008 / Server2012 / Server2016 /XP/Vista/Win7 /Win8/Win8.1/Win10/Win11（32/64 Bit）；Mac OS：10.8 / 10.9 / 10.10 / 10.11 / 10.12 / 10.13 / 10.14 / 10.15 / 11 / 12 ；Linux：Ubuntu 14.04/16.04/18.04 /Debian 10.0/Centos 7（32/64 Bit）；Astra Linux Special Edition V1.6/Redhat 8.0/ Centos 8.2(64 Bit)

Interface: High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; WiFi(2.4G/5G):IEEE 802.11a/b/g/n
