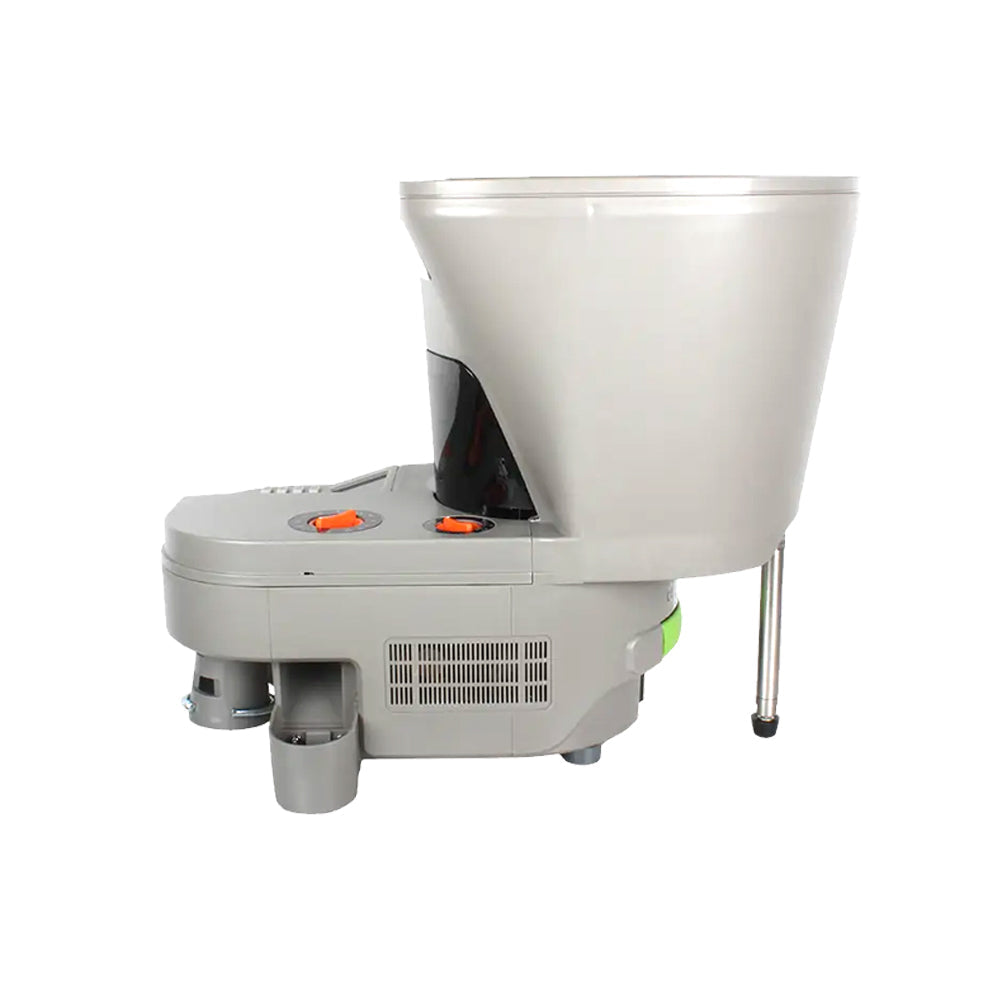

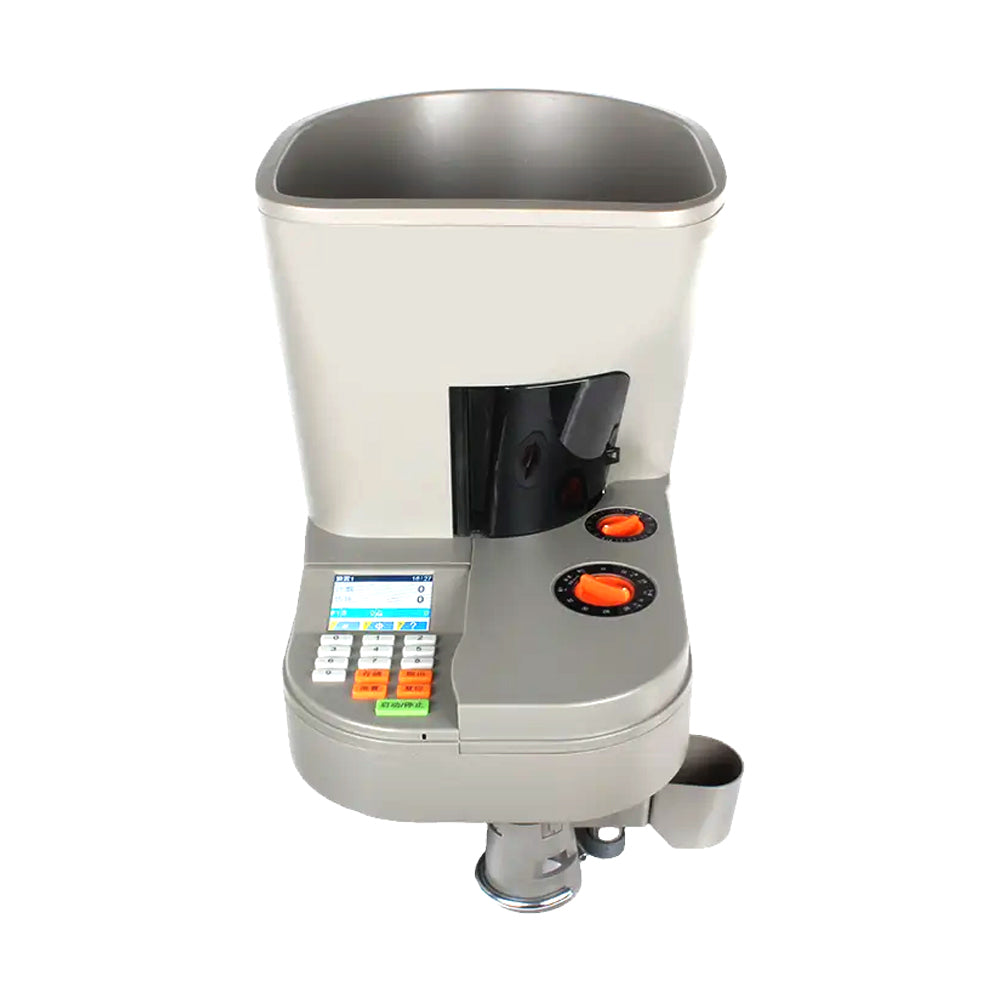

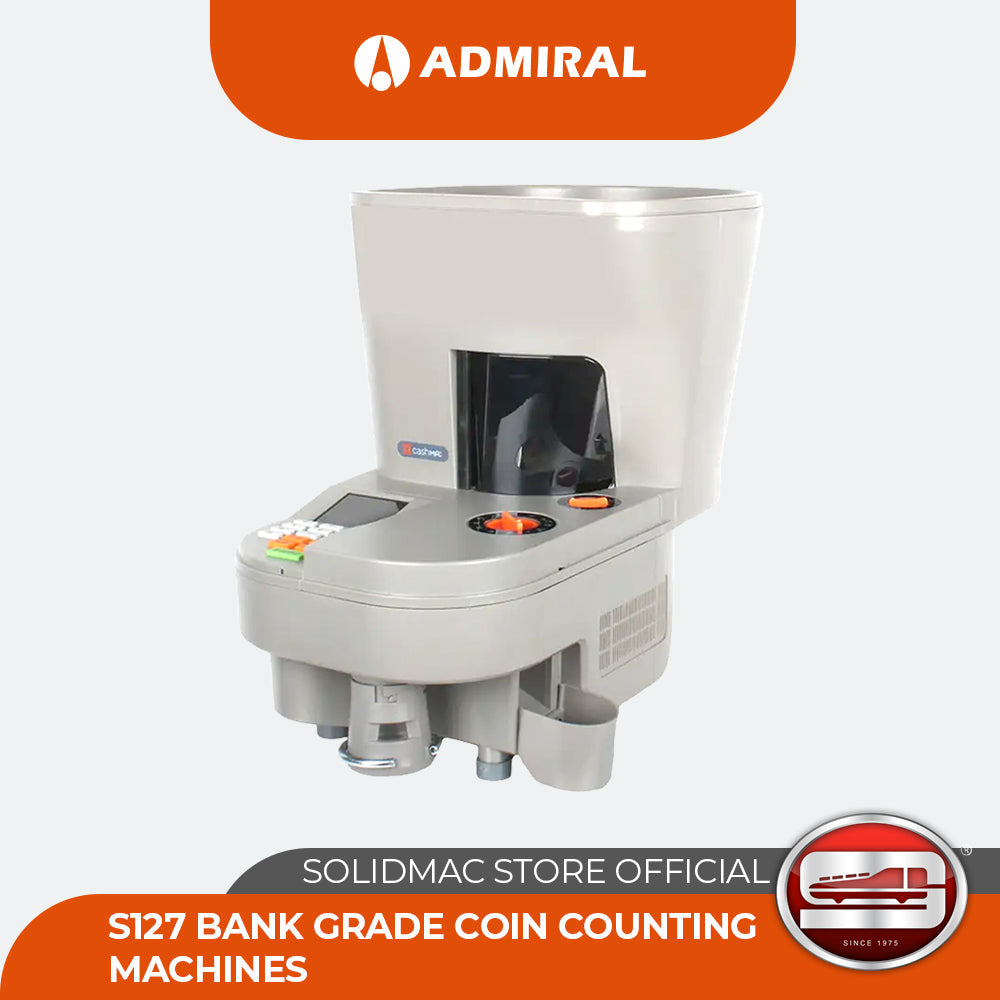

S127 Bank Grade Coin Counter and Sorter Machine Off-Sorter
Couldn't load pickup availability
Description
The S127 is a high speed counter for coins and tokens. It is designed to count a very wide range of coin sizes. The pre-selected coin size will counted while smaller coins are being rejected without slowing down the counting speed. The count result can be accumulate in value or piece.
Besides variable bag stops and count memory the S127 offers many useful features to meet your requirements.
The general usage of the S127 is to process coins or tokens in the specified dimensions.
This manual gives the user detailed information about the usage of the machine and must be read before usage of the S127
• Hopper capacity: up to 10,000 coins
• Speed: Up to 3.400 coins/tokens per minute
• Coin size range: Diameter: 14 - 34 mm,
• Thickness: 0.8 – 3.8 mm
• Software Update: SD-card
Specifications
| Dimensions | 285 mm (W), 465 mm (D), 385 mm (H) |
| Weight | 9.6kg |
| Capacity | Hopper capacity up to 10,000 coins |
| Speed | Up to 3.400 coins/tokens per minute |
| Display | 3”color LCD with large visibility angle |
| Currencies | All Currencies |
| Power Supply | 100-240V, 50-60Hz |
| Power consumption | 60 W Peak, 22 W Operation, 8 W Standby |
| Operating temperature | 10° C to 35° C (50F – 95F) |
| Operating humidity | 20% to 80% RH (non-condensing) |
| Options | External printer (1 1002) Paper rolls for printer (22307) External display L (11010) External display S(11011) Tubing set (EUR/22302) Foot pedal (21004) RS232 cable (11004) |
| Software Update | SD-Card |
| Coin size range | Diameter: 14 - 34 mm Thickness: 0.8 – 3.8 mm |
| Memory | Total and bag content |
| Count modes | Piece and Value counting (9 denominations, free programmable) |
| Acoustic noise level | LpA<84 dB(A) (uncertainty: 2) LpA Standby < 1 dB(A) |
